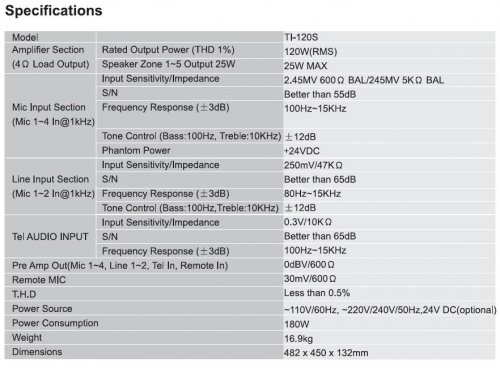

• MIC 1-4,LINE 1-2 input with treble and bass control With volume control for 5 zones output Built-in and chime Dc 24v input With led level output Phantom power and switch Mic remote control input Master volume control 3 priority functions The 1st priority:EMCoverride all audio sources,5zones can auto turn on when emgerncy signal coming. The 2nd priority:Tel overrride MIC1-4 ,LINE 1-2,CHIME,duild in siren(except EMC) The 3rd priority:MIC 1,Chime,built-in siren override MIC2-4 and LINE 1-2 Model TI-120S TI-240S TI-350S Amplifier Section (4Ω Load Output) Rated Output Power (THD 1%) 120W(RMS) 240W(RMS) 350W(RMS) Speaker Zone 1~5 Output 25W 25W MAX 50W MAX 70W MAX MIC Input Section (MIC 1~4 In@1kHz) Input Sensitivity/Impedance 2.45MV 600Ω BAL/245MV 5KΩ BAL S/N Better than 55dB Frequency Response (±3dB) 100Hz~15KHz Tone Control (Bass:100Hz, Treble:10KHz) ±12dB Phantom Power +24VDC Line Input Section (MIC 1~2 In@1kHz) Input Sensitivity/Impedance 250mV/47KΩ S/N Better than 65dB Frequency Response (±3dB) 80Hz~15KHz Tone Control (Bass:100Hz,Treble:10KHz) ±12dB Tel AUDIO INPUT Input Sensitivity/Impedance 0.3V/10KΩ S/N Better than 65dB Frequency Response (±3dB) 100Hz~15KHz Pre Amp Out( MIC 1~4, Line 1~2, Tel In, Remote In) 0dBV/600Ω Remote MIC 30mV/600Ω T.H.D Less than 0.5%
