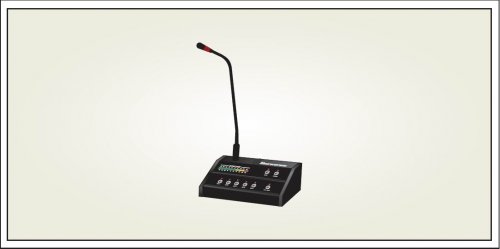

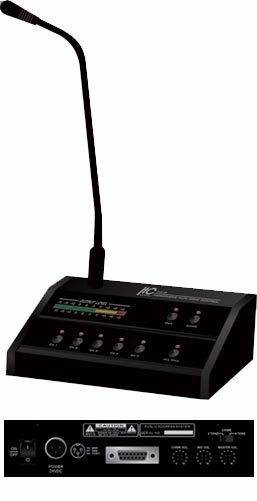

• Descriptions Descriptions T-318 is remote control microphone to work with TI-120S/TI-240S/TI-350S,5 zone mixer amplifier for remote zone control.Features of 1kms remote distance control and zone paging and priority over others inputs. Features ■ Single shot chime ■ Speaker line control Speaker zone of TI-120S/240S/350S can be controlled by T-318 ■ Zone control circuits Speaker zones can be selected individually by means of the channel switches or altogether using the all call switch. ■ Announcements by microphone Unobtrusive and easy to use condenser type microphone which is highly sensitive and reproduces high clarity speech. ■ Pre-announcement chime A two tone chime is incorporated for pre-announcement purposes. It is initiated by pressing the chime switch. ■ LED output level indication The ten segment LED barograph display indicates the instantaneous signal output level of the amplifier. Specifications Model T-318 Output Level/Impedance +4dB(unit gain)/600Ohms balances output MIC Input Sensitivity/Impedance -50dB/600Ohms balances Frequency Response 20Hz~18kHz, -3dB THD Less than 0.1% S/N Better than 65dB Speaker Control Terminal & Switch 5CH MIC Type Condenser Microphone Polar Pattern Unidirectional Frequency Response 100Hz~16,000Hz Impedance Max 680 Sensitivity(0dB=1V/0/.1Paat 1KHz) -47dB+3dB S/N Ratio More than 60dB General Power Source DC 24V(used by D-Sub connector) Weight 960g (Without Microphone) Dimensions (W×H×D) 200x120x55
